Views and layouts

A view is a saved way to look at a database, with its own layout, filters, sort, grouping and visible properties. Terra has twelve layouts.

A view is a saved way to look at a database: a layout, such as a table or a board, plus the filters, sort, grouping and visible properties that go with it. One database can have many views, and they all show the same notes. Drag a card to Done on the board and the table and the calendar say Done too, because the value lives in the note.

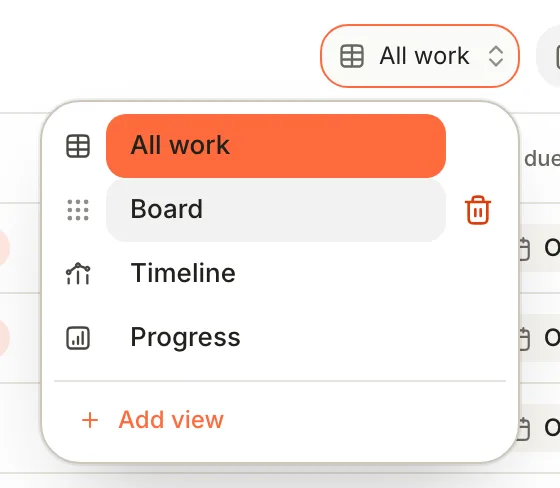

The database header's view menu open, listing All work, Board, Timeline and Progress with Add view at the bottom. The Board row shows a drag grip and a delete button. — The view menu lists a database's views. Point at one to show its delete button; drag its icon to reorder.

Switch and add views

The view menu at the left of the database's header shows the current view. Click it to switch to another.

Open the view menu and choose Add view, or click + (Add view) in the header.
Terra adds a table called New view and opens View preferences on the Layout tab.
Pick a Layout, type a Name, and click Save view.

A new view starts clean, with no filters, sort or grouping. To start from a view you already have, click Duplicate view in View preferences; the copy is named after it, with "copy" on the end.

Rename a view: change its Name on the Layout tab and click Save view.
Reorder views: drag a view by its icon in the view menu.
Delete a view: point at it in the view menu and click the trash (Terra asks Delete view “Board”? first), or click Delete view in View preferences. Either way, the message that follows offers Undo. The menu won't delete a database's last view; View preferences will, and that deletes the whole database, after asking.
Change layout fast: ⇧⌘V moves the current view to the next layout and saves it.

A view keeps its settings for each layout, so switching a view to a board and back to a table brings the table's settings back.

Layouts

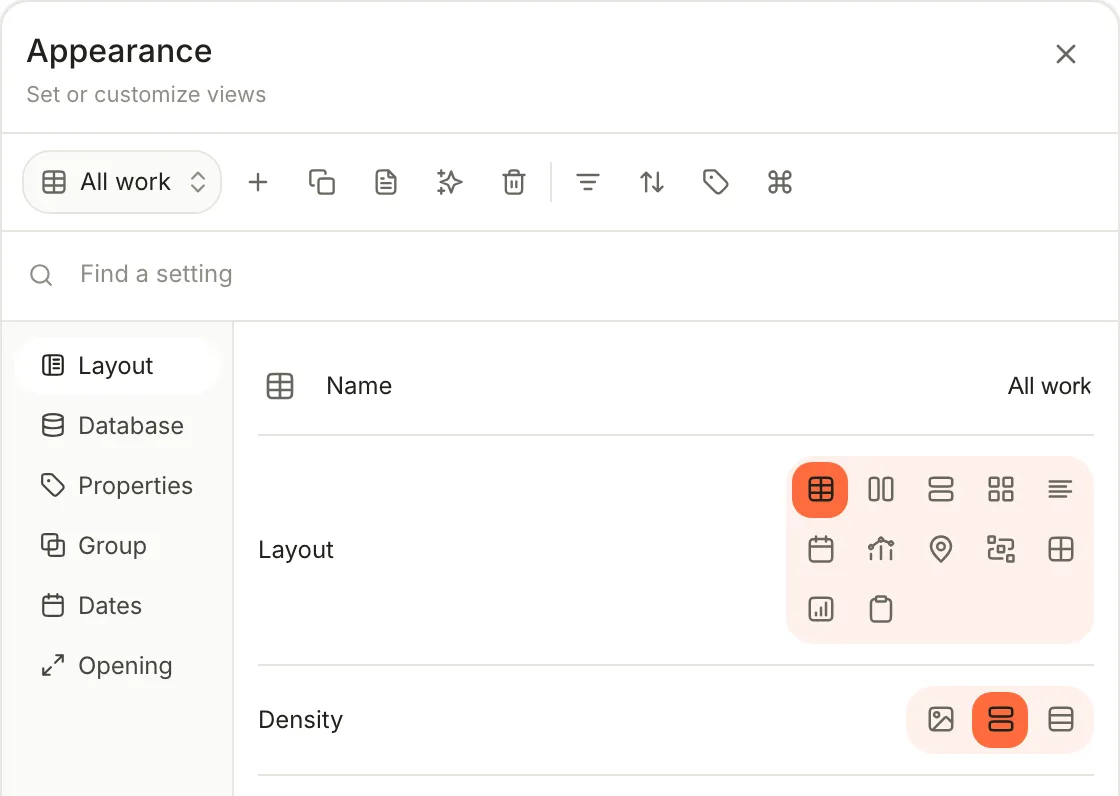

The Layout tab of View preferences: Name All work, and a grid of twelve layout icons with Table selected, followed by Density. — Pick a layout on the Layout tab. Point at an icon to see its name.

Layout	Shows notes as	What it needs
Table	Rows and columns you can edit in place	Nothing
Board	Cards in columns, one per value. Drag a card to change the value.	A property to group by. Terra starts with your first Status property.
List	Compact rows with a few properties	Nothing
Cards	A grid of cards, with cover images when notes have them	Nothing
Feed	A column of larger cards with a preview of each note	Nothing
Calendar	Notes on a month, week, day or agenda	A Start date on the Dates tab. Add an End for ranges.
Timeline	Bars across time, Gantt-style	Start and End dates on the Dates tab
Map	Pins on a map	Map turned on, then a Location property or Latitude and Longitude numbers. Fetches map tiles from the internet.
Graph	Dots joined by lines	Sources for the lines on the Relationships tab. New graphs start with wiki-links, embeds and citations.
Canvas	Cards you arrange freely, with connections between them	Nothing
Chart	A bar, horizontal bar, line or donut chart, or one big number	An X axis and a Y axis on the Chart tab
Form	An entry form; each submission becomes a new note	The fields to ask for, on the Form tab

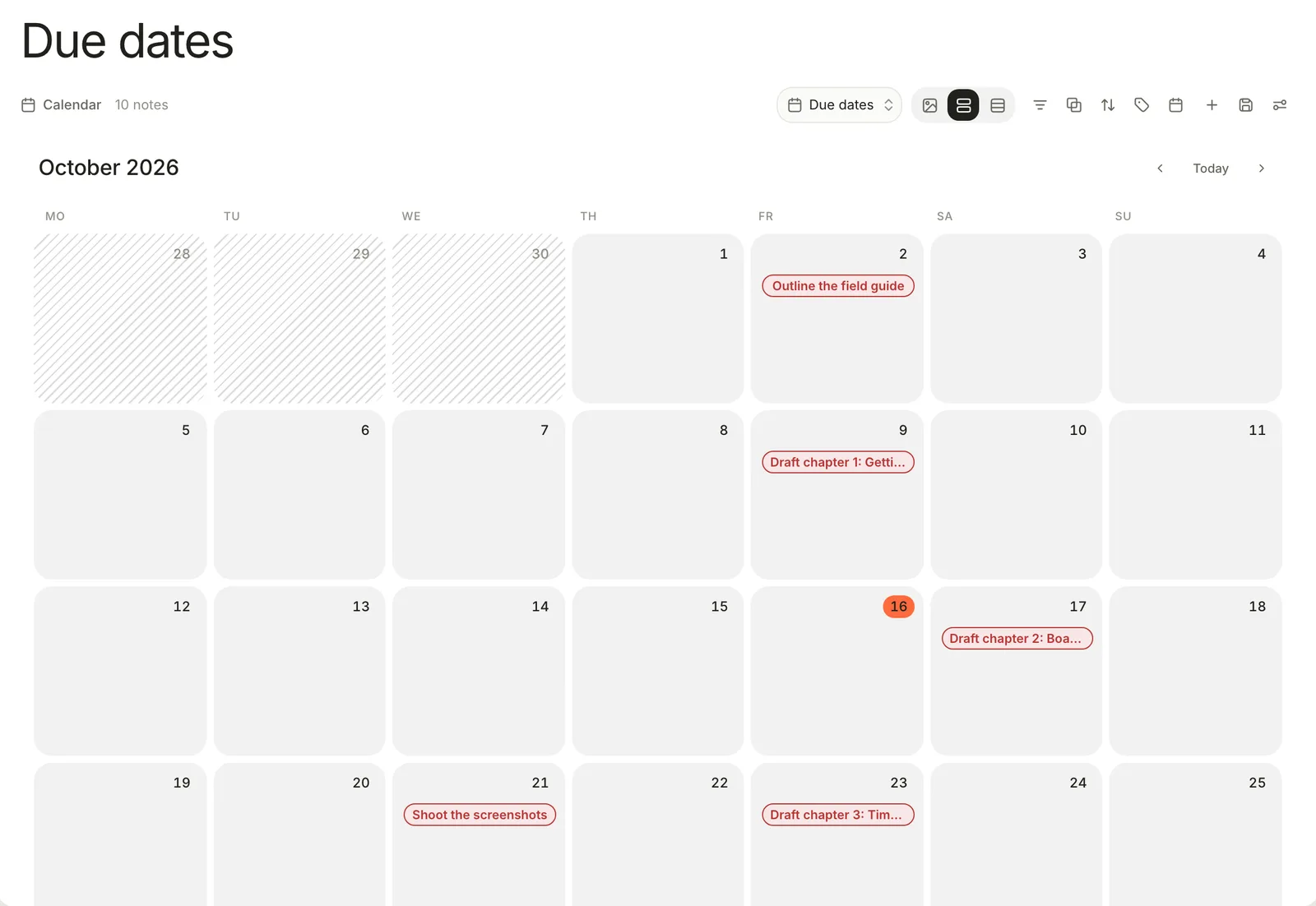

A Calendar view named Due dates showing October 2026, with field-guide work items on the days they're due. — A Calendar view of the same notes, placed by their due property. Today is circled.

On task databases, Calendar and Timeline can't place tasks by their due or start dates; the built-in Calendar shows task due dates instead. For boards, timelines and charts built step by step, see Run a project.

View preferences

Click View preferences at the right end of a database's header. The panel, titled Appearance, holds everything about the current view:

Top row: the view switcher, Add view from (pick a layout first), Duplicate view, Save as Markdown note, Classify notes (see Capture and classify), Delete view, then Filters, Sort, Properties and Arrange header actions.
Find a setting searches every tab at once.
Footer: Reset, Save as view and Save view.

Tab	What's on it	Shown
Layout	Name and icon, Layout, Density, Show note glyph, and the layout's own options, such as Row lines for tables or Column width for boards	Always
Database	What the database collects. See Databases.	Databases you made
Properties	Wrapping and Freeze header for tables; Property labels for boards, cards and feeds	When the layout has them
Group	Primary group, Subgroup, date periods, Group status by, Show empty groups, Hidden groups	Always
Dates	Start and End for calendars and timelines, timeline progress settings, Date labels	Always
Relationships	What draws the lines between notes	Graph and Canvas
Chart, Form, Map, Graph, Canvas	That layout's own settings	On that layout
Opening	Open notes as a Peek, a Pane, Full page or just their Properties, and where a peek or pane appears	Always
Sources, Statuses	Where tasks come from, and task statuses	Task databases

While the panel is open, your changes are a draft. A dot marks the view, and nothing is saved until you click Save view. Reset throws the draft away; Save as view keeps the original and saves the draft as a new view named after it, with "copy" on the end. Leave with a draft unsaved and Terra asks Unsaved database views, with Save, Discard and Cancel. With the panel closed, the header's controls save as soon as you use them.

Arrange header actions decides which controls sit in the header, which go in its More menu, and which stay in the panel. It can also put one of your saved views in the header as a one-click button.

Save a view as a note

To keep a record of where things stood, such as for a status report, freeze a view into a note.

Open the view and click View preferences.
Save any changes first. While the view has unsaved changes, the button is greyed out and labelled Save the view to snapshot it.
Click Save as Markdown note. Terra says Saved “All work” as a note; click Open to see it.

The note lands in your Inbox folder, titled with the database, the view and the day, such as Field guide launch · All work · 2026-10-16. Its body is a Markdown table of the view's rows in their order, with the view's visible columns. The first rows look like this:

| Title | Status | Owner | Start | Due | Effort |
| - | - | - | - | - | - |
| [[Outline the field guide]] | Done | Maya | 2026-09-28 | 2026-10-02 | 2 |
| [[Draft chapter 1: Getting started]] | Done | Maya | 2026-10-01 | 2026-10-09 | 5 |
| [[Draft chapter 2: Boards]] | In progress | Sam | 2026-10-07 | 2026-10-17 | 5 |

Each title is a link to its note. The table holds up to 1,000 rows; past that, a line above it says how many of the total it shows. The note doesn't change when the database does.

Put a view in a note

Type /database on an empty line to place a live database in any note, with its view menu and controls. See Put a database in a note, and Build a personal dashboard for a page of counts, charts and boards.
